Small size load sensor 2kg small load cell 20N small size weight sensor 5 lb

Forsentek Co., Limited
Contact Now

Small size load sensor 2kg small load cell 20N small size weight sensor 5 lb

  • 1
  • 2
  • 3

Brand Name : Forsentek

Model Number : FMZK

Place of Origin : China

MOQ : 5pcs

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 50500pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Weight measurement

Type : Smallest load cell transducer

Output : Analog Sensor

Capacity : 0-100N(0-10kg)

Contact Now

Small size load sensor 2kg small load cell 20N small size weight sensor 5 lb

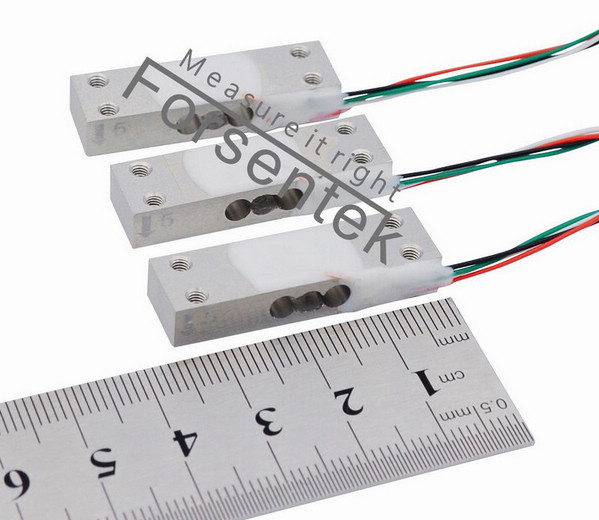

Small size load sensor FMZK is a weight transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.FMZK utilizes strain gage technology to deliver maximum 0.05% non-linearity of the rated output,1000 ohms strain gauges are used to minimize the power consumption which makes it suitable for weighing electronics where durability matters.Small size load cell sensor FMZK offers 1kg / 2kg / 3kg / 5kg / 6kg / 10kg rated capacities to choose from.Smallest load sensor FMZK weighs only 12g thanks to its compact size and aluminum construction which makes it applicable for portable weighing devices.Miniature size,high accuracy,very small size,light weight,low cost,you may find Micro load cell FMZK suitable for weighing applications such as coffe machine weight measurement, vending machine weight monitoring,warehouse weight management,arduino based weighing instruments,packaging machines,feeding machines and so on.Besides the standard specifications,Forsentek is also capable of and willing to provide custom made solutions according to clients' specific requirements.

Small size load sensor 2kg small load cell 20N small size weight sensor 5 lb

Specifications

Rated capacity

0.5kg / 5N / 1.1lb

1kg / 10N / 2.2 lb

2kg / 20N / 4.4lb

3kg / 30N / 6.6 lb

5kg / 50N / 11 lb

6kg / 60N / 13.2lb

10kg / 100N / 22 lb

Rated output 1.0 mV/V
Excitation 3-10 V
Zero balance ±0.1mV/V
Nonlinearity ±0.05% of R.O.
Hysteresis ±0.05% of R.O.
Nonrepeatability ±0.05% of R.O.
Creep(3min) ±0.05% of R.O.
Safe overload 120% of F.S.
Ultimate overload 200% of F.S.
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.02% of R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable

32AWG*170mm

(Longer cable available)

Wiring code Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-

Small size load cell sensor 10kg 5kg 3kg 2kg 1kg Miniature weighing transducer
Small size load sensor 2kg small load cell 20N small size weight sensor 5 lb

Dimensions(unit in milimeter)

Small size load sensor 2kg small load cell 20N small size weight sensor 5 lb

Click here to download datasheet
