Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

Contactless rotary torque sensor FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out.Non contact rotary torque transducer FYTE offers 5NM / 10NM / 20NM / 30NM / 50NM / 100NM six measuring ranges with maximum 6000RPM to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.

Specifications

Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft

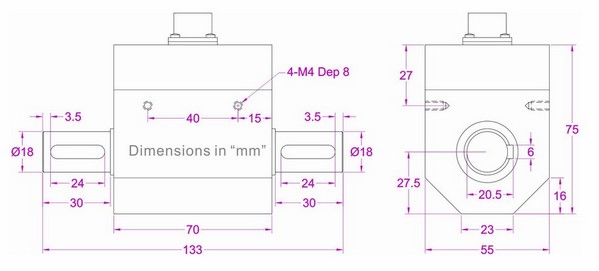

Dimensions

Shaft to shaft rotary torque sensor 5lbf-ft 10lb-ft 20 lb*ft 30lb*ft 50 lbf-ft Images
