IP67 3.0mV/V S type load cell interchangeable with Artech SS 20210 Load Cell

Name: IP67 30mVV S type load cell interchangeable with Artech SS 20210 Load Cell
Brand: Forsentek
Price: 1 USD

Wholesale IP67 3.0mV/V S type load cell interchangeable with Artech SS 20210 Load Cell from china suppliers

Brand Name : Forsentek

Model Number : FSRG

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Delivery Time : 4~25 working days

Packaging Details : Carton

Usage : Tension compression force measurement

Theory : Strain gauge load cell

Output : Analog Sensor

Capacity : 25kg~10ton(50lb~20klb)

Material : Stainless steel

Contact Now

IP67 3.0mV/V S type load cell interchangeable with Artech SS 20210 Load Cell

Stainless steel S type load cell FSRG is made based on strain gauge technology with unified 3.0mV/V output intended for tension compression force measurement,it is available in a wide range of capacities from 25kg to 10 ton (50lb to 20klb).Universal s-beam load cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available.Model FSRG is applicable for rope and chain strength testing,bagging machines,material testing machines,hanging scales,hoppers weighing applications.You may find model FSRG interchangeable with Siemens SIWAREX WL250 ST-S SA,VPG Revere 9363, Artech model SS 20210, ptglobal PT4000, Rice Lake RL20000SS and RL20000ST, VPG Sensortronics 60050 with lower cost but uncompromised quality.

IP67 3.0mV/V S type load cell interchangeable with Artech SS 20210 Load Cell

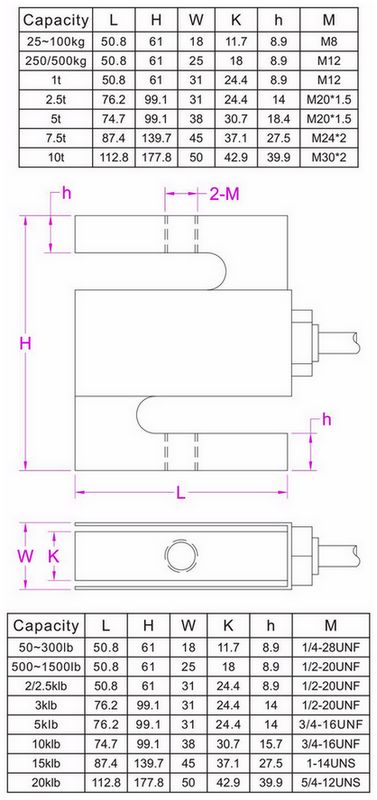

Dimensions(in milimeter)

IP67 3.0mV/V S type load cell interchangeable with Artech SS 20210 Load Cell

Specifications

Capacity	25kg~10ton (50lb~20klb)
Rated output	3.0 mV/V
Excitation	3-15V
Zero balance	±0.03mV/V
Nonlinearity	±0.02% R.O.
Hysteresis	±0.02% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02% R.O.
Safe overload	150% F.S.
Ultimate overload	250% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-35...+65^oC
Temperature shift zero	±0.02% R.O./10^oC
Temperature shift span	±0.02% R.O./10^oC
Input resistance	430±60 ohms
Output resistance	352±3 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP67
Material of element	Stainless steel
Cable	Ø5*6000mm 4-core shielded cable
Wiring code	Red--Exc+ Black--Exc- Green---Sig+ White--Sig-

IP67 3.0mV/V S type load cell interchangeable with Artech SS 20210 Load Cell

IP67 3.0mV/V S type load cell interchangeable with Artech SS 20210 Load Cell Images
