500kg 1t 2.5t 5t 10t S-beam load cell Siemens SIWAREX WL250 ST-S SA

Name: 500kg 1t 25t 5t 10t Sbeam load cell Siemens SIWAREX WL250 STS SA
Brand: Forsentek
Price: 1 USD

Wholesale 500kg 1t 2.5t 5t 10t S-beam load cell Siemens SIWAREX WL250 ST-S SA from china suppliers

Brand Name : Forsentek

Model Number : FSRG

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Delivery Time : 4~25 working days

Packaging Details : Carton

Usage : Tension compression force measurement

Theory : Strain gauge load cell

Output : Analog Sensor

Capacity : 25kg~10ton(50lb~20klb)

Material : Stainless steel

Contact Now

500kg 1t 2.5t 5t 10t S-beam load cell Siemens SIWAREX WL250 ST-S SA

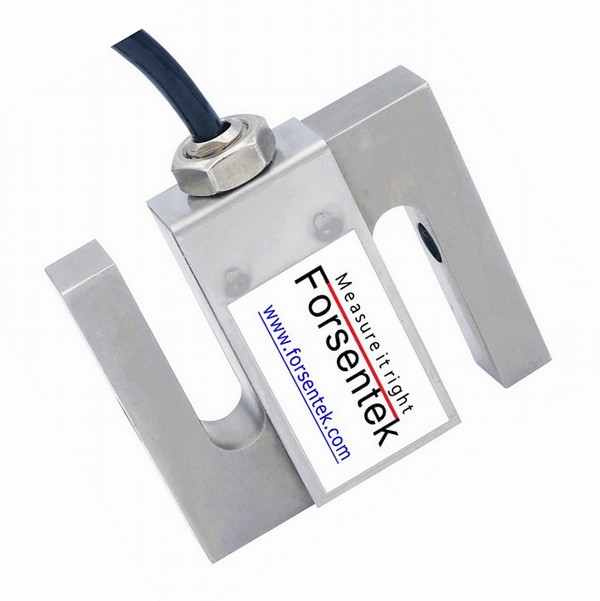

Tension compression s type load cell FSRG is made based on strain gauge technology with unified 3.0mV/V output intended for both tension and compression force measurement,it is available in 25kg / 50kg / 100kg / 250kg / 500kg / 1ton / 2.5ton / 5 ton / 10ton (50lb / 100lb / 150lb / 200lb / 250lb / 300lb / 500lb / 1klb / 2klb / 2.5klb / 3klb / 5klb / 10klb / 15klb / 20klb) measuring ranges to choose from.Universal s-beam load cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available.Model FSRG is applicable for rope and chain strength testing,bagging machines,material testing machines,hanging scales,hoppers weighing applications.You may find model FSRG interchangeable with VPG Revere 9363, Siemens SIWAREX WL250 ST-S SA, Rice Lake RL20000SS,rick lake RL20000ST, Artech model SS 20210, ptglobal PT4000, VPG Sensortronics 60050 with cheaper price but uncompromised quality.

500kg 1t 2.5t 5t 10t S-beam load cell Siemens SIWAREX WL250 ST-S SA

Dimensions(in milimeter)

500kg 1t 2.5t 5t 10t S-beam load cell Siemens SIWAREX WL250 ST-S SA
Specifications

Capacity	25kg~10ton (50lb~20klb)
Rated output	3.0 mV/V
Excitation	3-15V
Zero balance	±0.03mV/V
Nonlinearity	±0.02% R.O.
Hysteresis	±0.02% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02% R.O.
Safe overload	150% F.S.
Ultimate overload	250% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-35...+65^oC
Temperature shift zero	±0.02% R.O./10^oC
Temperature shift span	±0.02% R.O./10^oC
Input resistance	430±60 ohms
Output resistance	352±3 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP67
Material of element	Stainless steel
Cable	Ø5*6000mm 4-core shielded cable
Wiring code	Red--Exc+ Black--Exc- Green---Sig+ White--Sig-

Stainless steel S-beam load cell 10t 5t 2.5t 1t 500kg 250kg 100kg 50kg 25kg

500kg 1t 2.5t 5t 10t S-beam load cell Siemens SIWAREX WL250 ST-S SA
