Triaxial force transducer 500N 1kN 2kN 3kN 5kN 3-axis force measurement

Name: Triaxial force transducer 500N 1kN 2kN 3kN 5kN 3axis force measurement
Brand: Forsentek
Price: 1 USD

Wholesale Triaxial force transducer 500N 1kN 2kN 3kN 5kN 3-axis force measurement from china suppliers

Brand Name : Forsentek

Model Number : F3F

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2890pcs/month

Delivery Time : 4 weeks

Packaging Details : 1pc/box

Certification : CE

Usage : 3-axis force measurement

Force range : 50kN 30kN 20kN 10kN 5kN 3kN 2kN

Type : Multi axis force transducer

Force direction : Fx/Fy/Fz

Output : Analog Sensor

Contact Now

Triaxial force transducer 500N 1kN 2kN 3kN 5kN 3-axis force measurement

Low profile triaxial force sensor F3F is designed to measure force in Fx/Fy/Fz at the same time. Triaxial force sensor F3F offers 200N / 300N / 500N / 1kN / 2kN / 3kN / 5kN rated capacities for each axis to choose from,each channel is able to measure force in both tension and compression direction.Compact design makes 3-component load cell F3F suitable for 3-axis force measurement applications with limited mounting space.You may find 3D force sensor F3F interchangeable with interface 3-axis load cell 3A120 series. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Triaxial force transducer 500N 1kN 2kN 3kN 5kN 3-axis force measurement

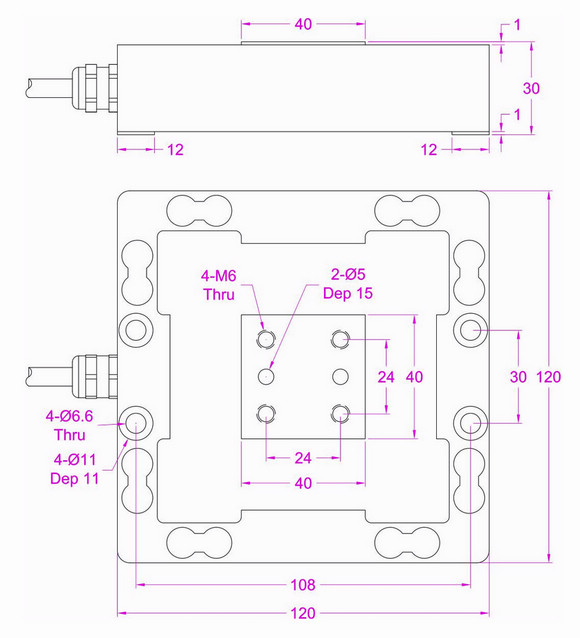

Dimensions(in milimeter)

Specifications

Rated Capacity	200N / 45 lbf / 20kgf 300N / 67 lbf / 30kgf 500N / 112lbf / 50kgf 1kN / 225lbf / 100kgf 2kN / 450lbf / 200kgf 3kN / 674lbf / 300kgf 5kN / 1124lb / 500kgf
Sensitivity	1.0mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Non-linearity	±0.3% R.O.
Hysteresis	±0.3% R.O.
Non-repeatability	±0.1% R.O.
Creep(5min)	±0.05% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift on zero	±0.03% R.O./^oC
Temperature shift on span	±0.02% R.O./^oC
Input resistance	700±100 ohms
Output resistance	700±100 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP65
Material of element	Stainless steel
Cable	Ø6*3000mm 12-pin shielded
Wiring code	4-wire connection for each axis

Triaxial force load cell 500N 1kN 2kN 3kN 5kN multi-axis force sensor
Triaxial force transducer 500N 1kN 2kN 3kN 5kN 3-axis force measurement

Click here to download datasheet
