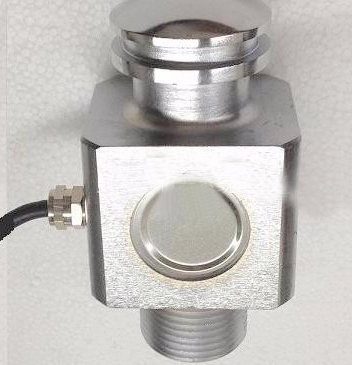

Compression load cell 20t compression force sensor 200KN

  • 1
  • 2

Place of Origin : China

Brand Name : Forsentek

Model Number : FK01-10t

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1000pcs/month

Usage : Compression force measurement

Theory : Strain gauge force sensor

Output : Analog Sensor

Contact Now

Compression load cell 20t compression force sensor 200KN

Features

  • Alloy steel,strain gauge technology,high accuracy.
  • Compression force measurement.
  • Custom design available

Dimensions

Compression load cell 20t compression force sensor 200KN

Specifications

Capacity 5t/10t/20t/30t
Rated output 1.8-2.2mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05 R.O.
Creep(30min) ±0.05 R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 385±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Alloy steel
Cable Ø5*2000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Compression force sensor 200KN compression load cell 20t

Compression load cell 20t compression force sensor 200KN

Compression load cell 20t compression force sensor 200KN

Ordering code: FK01-5t,FK01-10t,FK01-20t,FK01-30t
