Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Product Categories
Forsentek Co., Limited
Contact Now

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Place of Origin : China

Brand Name : Forsentek

Model Number : FYRD

MOQ : 1pc

Packaging Details : 1pc/box

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1950pcs/month

Certification : CE

Usage : Torque measurement

Type : Square rotary torque sensor

Output : Analog Sensor

Torque measurement direction : Clockwise&Counterclockwise

Connection : Square drive

Contact Now

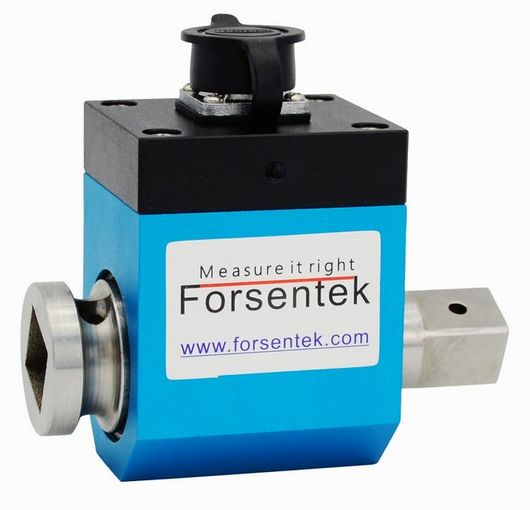

Square drive rotary torque sensor

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Features

  • Strain gauge technology,analog output
  • Slip-ring rotary torque sensor
  • Both clockwise and counterclockwise measurement
  • Up to 3000 r/m
  • Rotary torque measurement,dynamic torque measuring,bolt fastening torque measurement

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Dimensions

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Specifications

Capacity

5N*m / 50kgf*cm / 44 lbf*in

10Nm / 100kg*cm / 88 lb-in

15Nm / 150kgf-cm / 132lbf*in

20Nm / 200kg-cm / 177lb-in

30N-m / 3kgf*m / 265 lbf-in

50Nm / 5kg*m / 442 in-lb

100N*m / 10kgf-m / 885 lb-in

200Nm / 20kg-m / 1770 lb*in

300N*m / 30kg*m / 2655 lbf*in

500Nm / 50kgf*m / 4425lbf-in

1000N*m / 100kg*m / 8850lb*in

1500N-m / 150kgf*m / 13276 lbf*in
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.25% R.O.
Hysteresis ±0.25% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP40
Material of element Stainless steel
Cable

Ø5*3000mm 4-core shielded cable

(Mating connector included)
Wiring code

Clockwise@

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

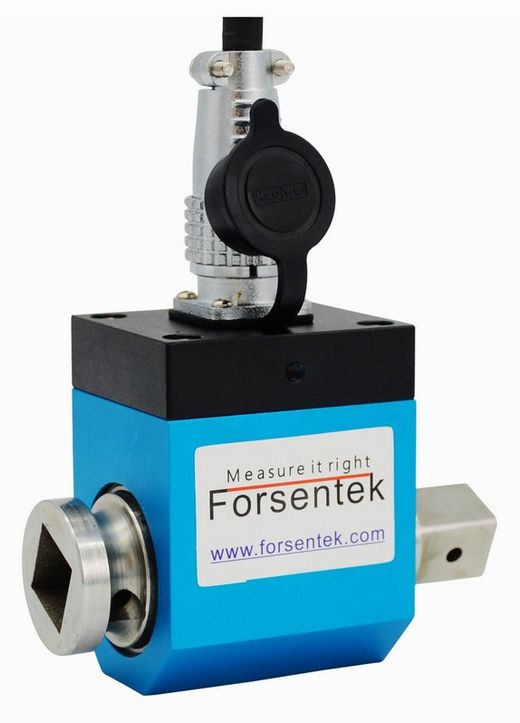

Square drive rotary torque sensor with 3/8" 1/2" 3/4" 1" square

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

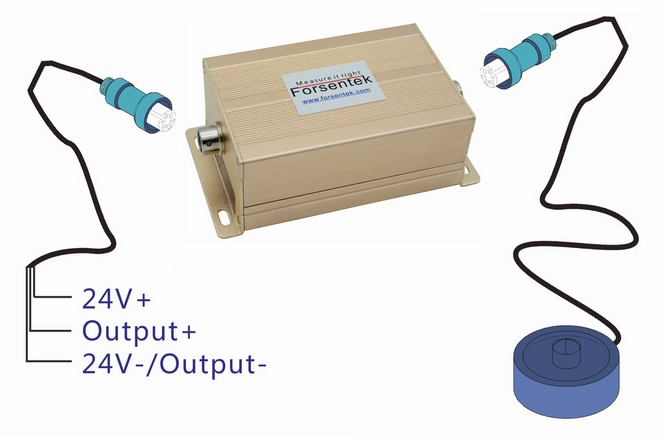

Rotary torque sensor FYRD output millivolt signal between -20~20mV,signal conditioner can be used to get 5V,10V,0-5V,0-10V or 4-20mA for easy data acquisition.

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

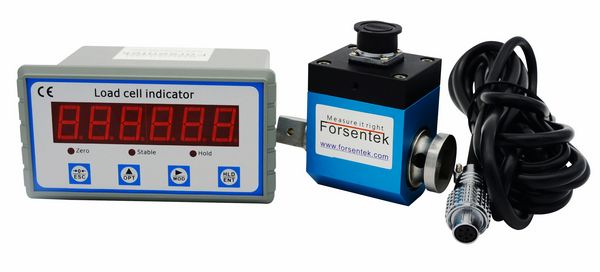

Torque indicator FPT is integrated with high accuracy/high speed 24 bit ADC,sampling speed up to 960Hz,the combination of torque sensor and torque indicator can get the readout of measured torque.FPT is also equipped with RS485 or RS232 communicaiton port,analog output 0-5V,0-10V,4-20mA is also achievable from FPT.

Square Drive Rotary Torque Sensor 0-1500Nm Square Type Torque Transducer

Click here to download datasheet
