Miniature size inline load cell 50N 100N 200N 500N 1000N force sensor

Product Categories
Forsentek Co., Limited
Contact Now

Miniature size inline load cell 50N 100N 200N 500N 1000N force sensor

  • 1
  • 2
  • 3

Brand Name : Forsentek

Model Number : FL13

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Usage : Force measurement

Theory : Strain gauge load cell

Output : Analog Sensor

Capacity : 5kg 10kg 20kg 50kg 100kg

Force measurement direction : Tension and compression

Contact Now

Miniature size inline load cell micro force sensor

Miniature size inline load cell 50N 100N 200N 500N 1000N force sensor
Features

  • Miniature size,inline structure,stainless steel construction
  • Rod ends,easy to install
  • Strain gauge technology,analog output
  • Tension and compression force measurement

Specifications

Capacity

5kg 10kg 20kg 50kg 100kg

(50N 100N 200N 500N 1000N)
Rated output 1.0mV/V
Excitation 5-12V
Zero balance ±0.1mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(2min) ±0.2% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.05% R.O./oC
Temp. shift span ±0.05% R.O./oC
Input resistance 350±50 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø2*1000mm(Longer cable available)
Wiring code Red--E+ Black--E- Green--S+ White--S-

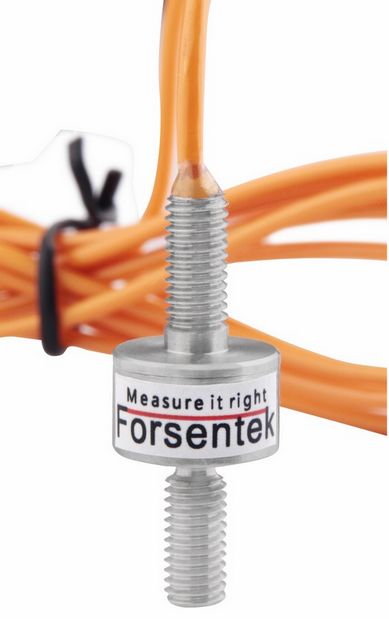

Miniature size inline load cell FL13

Miniature size inline load cell 50N 100N 200N 500N 1000N force sensor

Dimensions

Miniature size inline load cell 50N 100N 200N 500N 1000N force sensor

Ordering Code:
FL13-5kg FL13-10kg FL13-20kg FL13-50kg FL13-100kg
