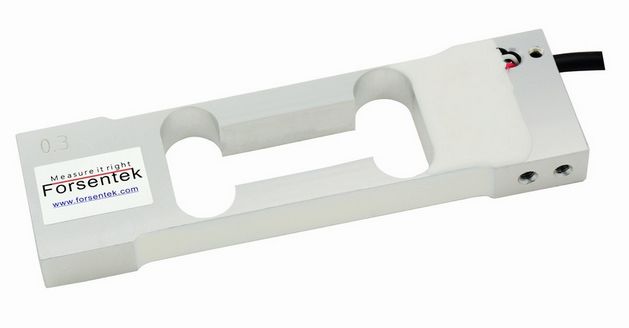

300 gram load cell 300g loadcell 3N weight sensor

Product Categories
Forsentek Co., Limited
Contact Now

300 gram load cell 300g loadcell 3N weight sensor

  • 1
  • 2
  • 3

Brand Name : Forsentek

Model Number : FNA

Place of Origin : China

MOQ : 2pcs

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 10000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Usage : Weight measurement

Theory : Resistance Sensor

Output : Analog Sensor

Capacity : 300g 600g 1kg 1.5kg 3kg

Contact Now

300 gram load cell 300g loadcell 3N weight sensor

300 gram load cell 300g loadcell 3N weight sensor

Features

  • Aluminum construction,small size
  • Strain gauge technology,analog output
  • Temperature compensated,high accuracy
  • Single point structure,easy to install
  • Corner trimmed,suitable for platform sizes up to 150*150(mm)
  • Widely used for price computing scales,counting scales,bench scales and other high accuracy weighing applications

Specifications

Capacity 0.3kg 0.6kg 1kg 1.5kg 3kg
Rated output 1.0±10%mV/V
Excitation 3-15V
Zero balance ±5% R.O.
Nonlinearity ±0.02% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.015% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*250mm(Longer cable available)
Wiring code Red--E+ Black--E- Green--S+ White--S-

Weighing load cell 300g 600g 1kg 1.5kg 3kg

300 gram load cell 300g loadcell 3N weight sensor

Dimensions

300 gram load cell 300g loadcell 3N weight sensor

300 gram load cell 300g loadcell 3N weight sensor

Ordering code

FNA-300g FNA-600kg FNA-1kg FNA-1.5kg FNA-3kg
