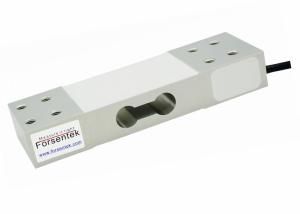

Name: 60kg 100kg 150kg 200kg 300kg 500kg weighing load cell for hive scale
Brand: Forsentek
Price: 1 USD

Brand Name : Forsentek

Model Number : FNP

Place of Origin : China

MOQ : 2pcs

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 9500pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Beehive scales,platform scales

Type : Platform load cell

Output : Analog Sensor

Capacity : 60kg 100kg 150kg 200kg 300kg 500kg

Feature : Off center weighing sensor

Contact Now

60kg 100kg 150kg 200kg 300kg 500kg

weighing load cell for hive scales

60kg 100kg 150kg 200kg 300kg 500kg weighing load cell for hive scale

Features

Specifications

Capacity	60kg 100kg 150kg 200kg 300kg 500kg
Rated output	2.0±5%mV/V
Excitation	5-15V
Zero balance	±5% R.O.
Nonlinearity	±0.015% R.O.
Hysteresis	±0.01% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./10^oC
Temperature shift span	±0.02% R.O./10^oC
Input resistance	405±10 ohms
Output resistance	350±3 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP65
Material of element	Aluminum alloy
Cable	Ø5*2000mm(Longer cable available)
Wiring code	Red--Exc+ Black--Exc- Green--Sig+ White--Sig-

Off-center load cell 60kg 100kg 150kg 200kg 300kg 500kg

60kg 100kg 150kg 200kg 300kg 500kg weighing load cell for hive scale

Dimensions(in "mm")

60kg 100kg 150kg 200kg 300kg 500kg weighing load cell for hive scale

Ordering code

FNP-60kg FNP-100kg FNP-150kg FNP-200kg FNP-300kg FNP-500kg
