Micro load cell 10N smallest load cell 1kg miniature load sensor
Micro load cell sensor FMZJ is a weight transducer that converts mechanical load into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.FMZJ utilizes strain gage technology to deliver maximum 0.1% non-linearity of the rated output,1000 ohms strain gauges are used to minimize the power consumption which makes it suitable for weighing electronics where durability matters.Small size load cell sensor FMZJ offers 1kg rated capacity.With 2cm total length,mini load cell FMZJ makes weight measurement for applications with limited mounting space possible. Small size load sensor FMZJ weighs only 1g thanks to its compact size and aluminum construction which makes it applicable for portable weighing devices. Miniature size, high accuracy, miniature size, light weight, low cost, you may find load cell sensor FMZJ suitable for weighing applications such as coffe machine weight measurement,vending machine weight monitoring,warehouse weight management, arduino based weighing instruments,packaging machines, feeding machines and so on. Besides the standard specifications, Forsentek is also capable of and willing to provide custom made solutions according to clients' specific requirements.
Specifications
| Capacity | 1kg(10N) |
| Rated output | 1.0 mV/V |
| Excitation | 3-10V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.05% R.O. |
| Hysteresis | ±0.05% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(2min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.005% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP60 |
| Material of element | Aluminum alloy |
| Cable | AWG32*80mm (Longer cable upon request) |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Micro loadcell 10N miniature load sensor 1kg

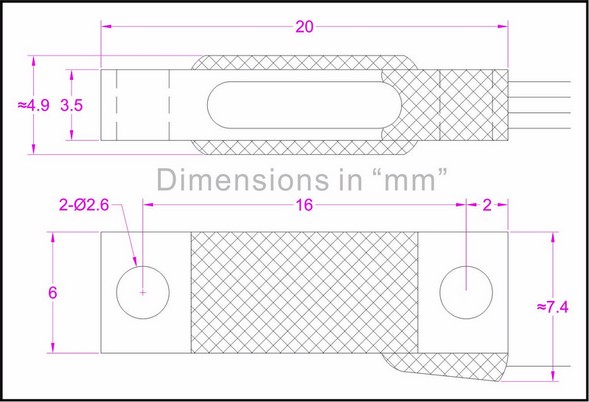

Dimensions(unit in "mm")
Click here to download datasheet
|
|
